BG-ATRS2 Tray Return System

BG-ATRS2 Automatic Tray Return System

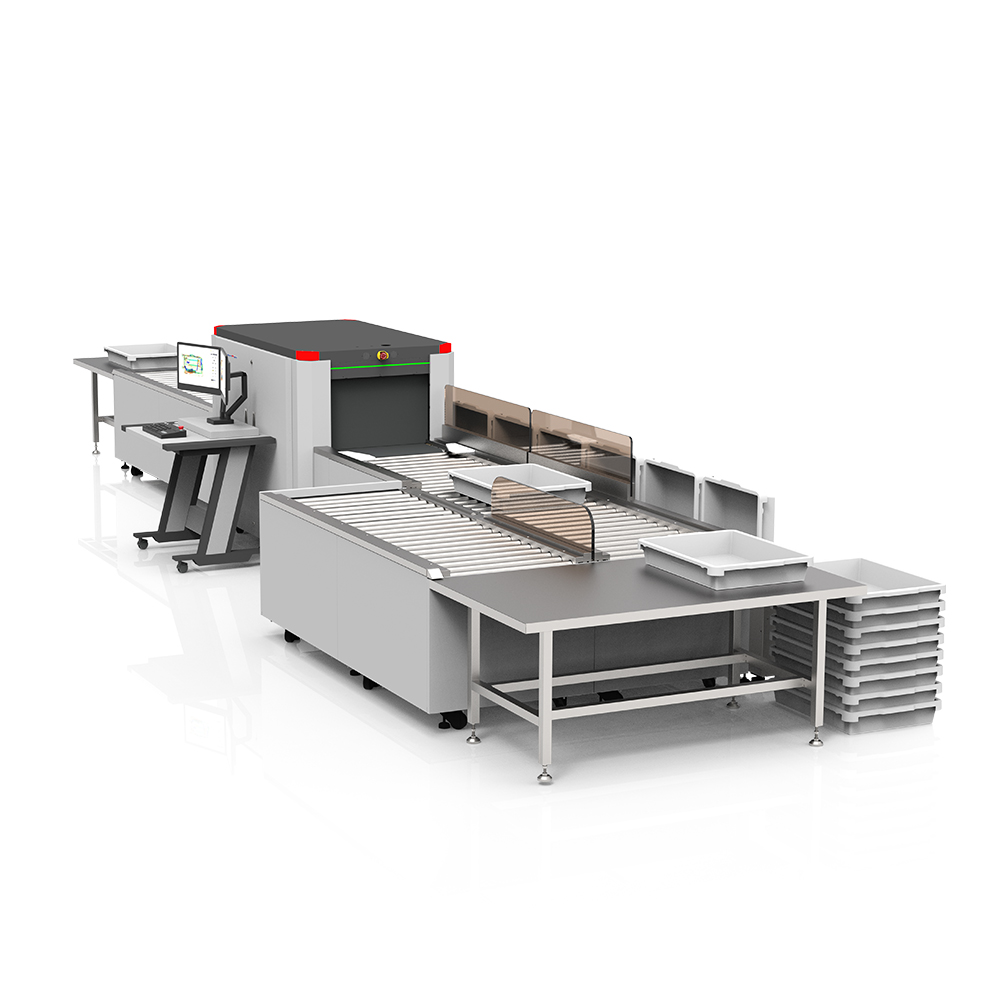

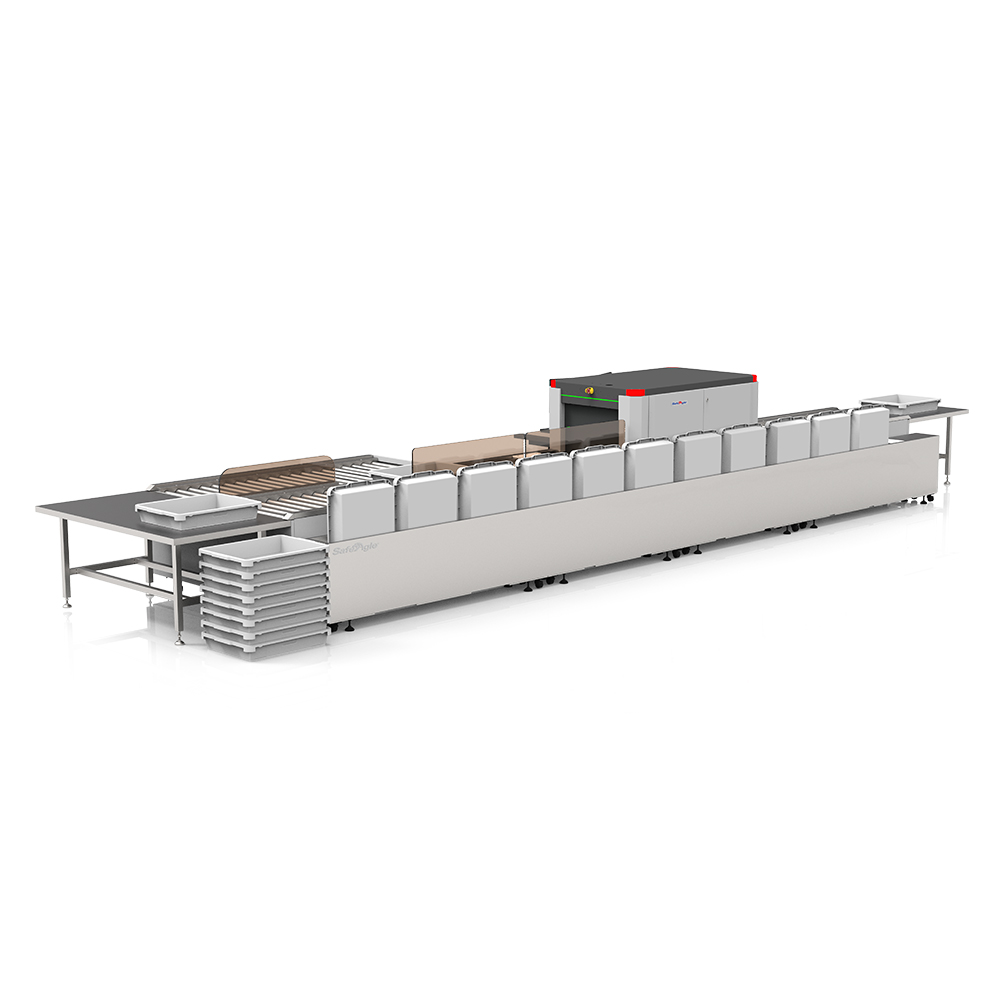

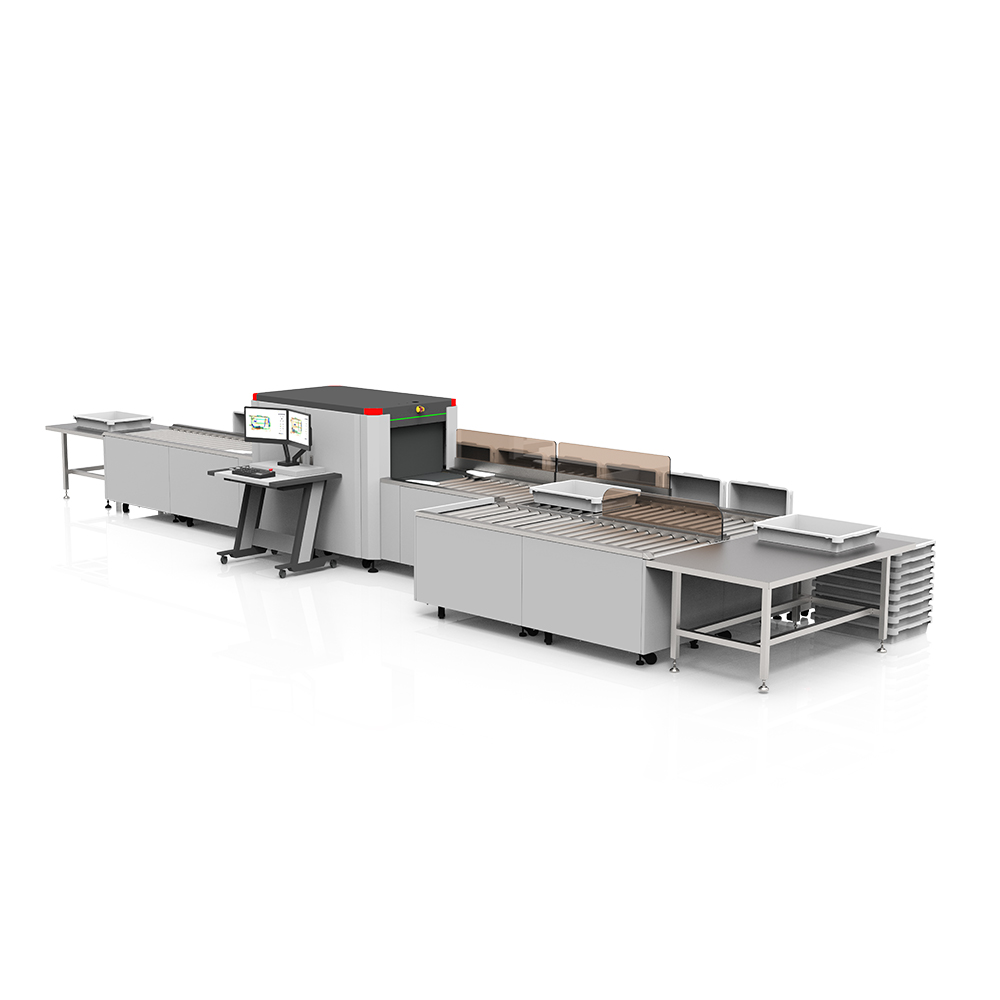

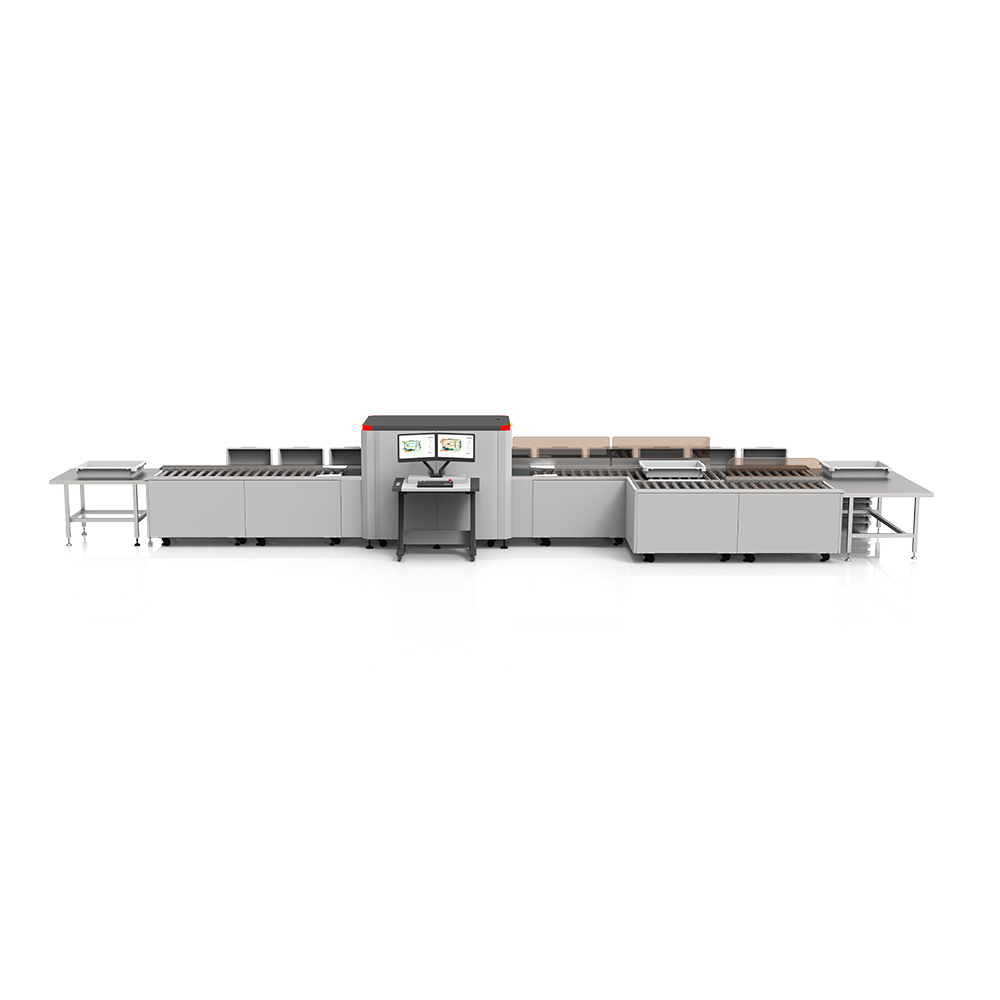

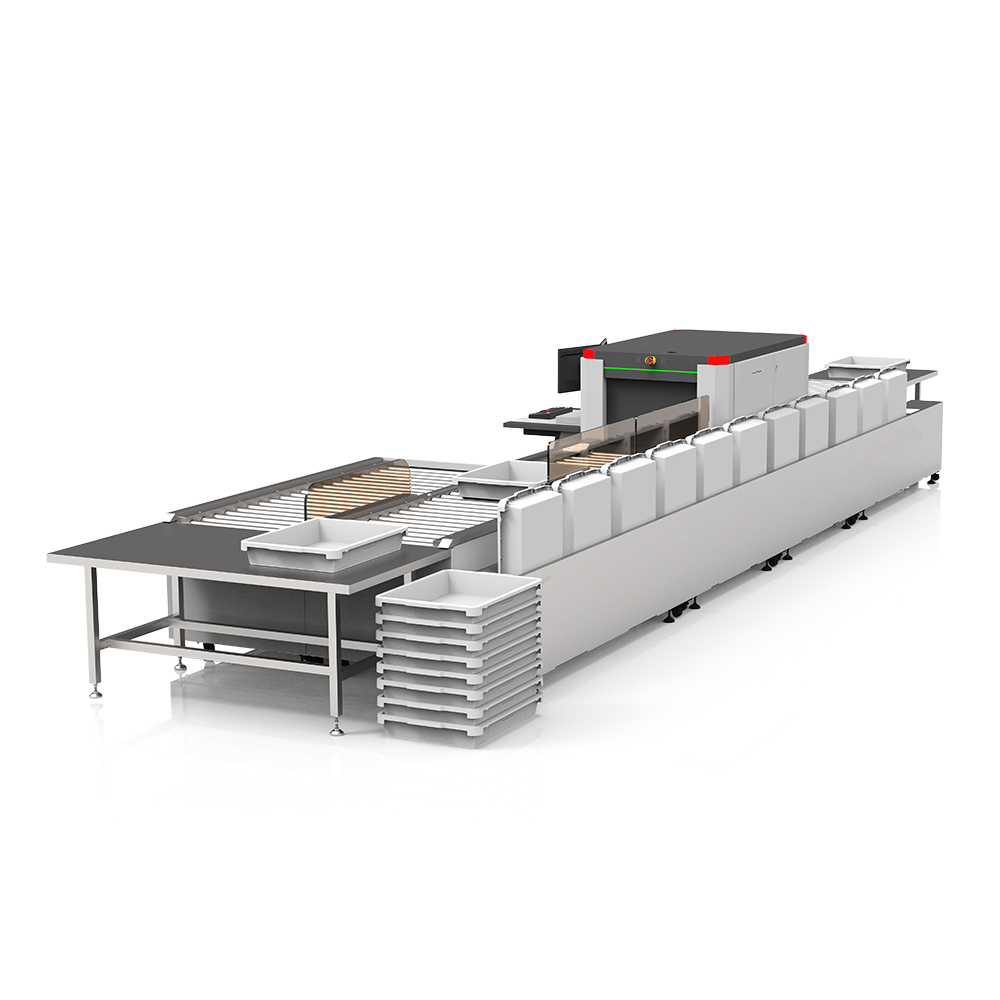

Automatic Tray Return System is a fully automatic return and conveyance system for baggage inspection system at security checkpoints.

BG-ATRS2 Tray Return System Description

BG-ATRS2 (ATRS), developed, designed, and manufactured by Shenzhen Buruide Technology Co., Ltd., is a fully automatic tray return and conveyance system for baggage handling in security checkpoints.

This system features intelligent operations such as automatic tray dispensing, re-inspection transfer. Overall, it enhances passenger security screening efficiency, reduces the workload of security staffs, and provides airports with efficient, convenient, and safe intelligent security screening solutions.

GENERAL SPECIFICATIONS

  • Length (mm): 10000-13000 (customizable)
  • Width (mm): 850 (customizable)
  • Height (mm): 1028 (customizable)
  • Drive Mode: Electric drum + electric cylinder
  • Conveyor Speed: 0.2-0.4m/s
  • Max.Tray Size: 68*52*11cm
  • Max.Conveyor Load: 50kg/zone
  • Power Supply: AC220-240V 50HZ
  • Power Consumption: 4.2KW
  • Return Tray Method: Automatic
  • Surface Material: 304 stainless steel, carbon steel, aluminum
