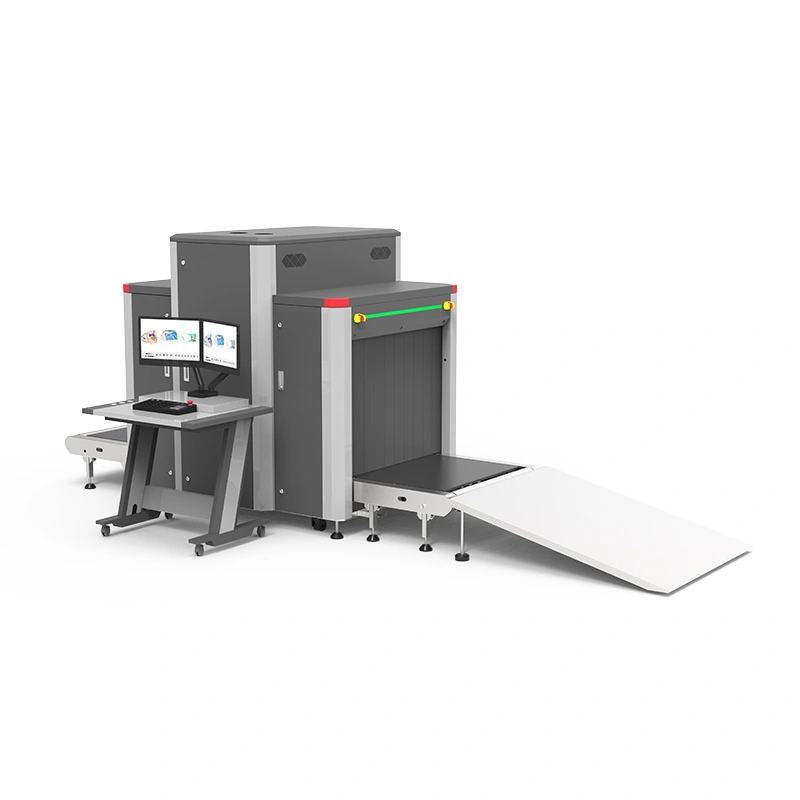

HP-SE10080C Large X-ray Screening System 7-Colors Detector

The Safeagle HP-SE10080C Large X-ray Screening System is a state-of-the-art high-performance X-ray baggage scanner, solutions, and services perfectly meet the most demanding potential threat inspection needs at border crossings, railway stations, logistics companies, hotels, government, and military installations, and high-risk facilities all over the world. It is ideal for cargo screening.

HP Series X-ray Baggage Scanner offers advanced switchable 4/7-colors imaging technology. Shows images in 7 colors, enables users to achieve optimal material identification by allowing them to view screened objects in 7 colors, each color correcting to a specific range of atomic number.

Combine with the Zeff-scan function to auto-highlighting the potential threat of explosive and narcotic (liquid or solid) on x-ray image in real time during scanning process according to the characteristics range of explosives and narcotics atomic number(zeff7.8.9) , which help to identify the suspicious more effectively.

Dual-energy supports to identify then display the objects concealed in bag in the specific color according to their atomic number, the metallics (guns, bullet, knife) can be blue, the organic (plastic, cloth, currency) can be orange.

Safeagle x-ray baggage scanner supports multiple Split-screen and Full-screen options for optimal viewing, operator can customize the color mode of the switchable main screen and auxiliary screen respectively.

GENERAL SPECIFICATIONS

• Tunnel Size: 1006(W) x 804(H)mm
• Dimensions: 3146(L) x 1292(W) x 1706(H)mm
• Convery Max Load: 250kg
• Belt Speed: 0.23m/s Bidirectional

X-RAY GENERATOR

• Voltage: 140kV(optional:160kV)
• Wire Detectability: 40 AWG
• Spatial Resolution: 1.0 mm Horizontal, 1.0 mm Vertical
• Steel Penetration: 36 mm steel Typical
• Tube Current: 0.7 mA
• Cooling: Sealed Oil Bath with Forced Air
• Duty Cycle: 100%,No Warm-Up Procedure Required
• Beam Direction: Diagonally Upward
• Detector: L-Shaped Array
• Dual-energy: Yes

WORKING ENVIRONMENT

• Operating Temperature: 0°C- 40°C 32ºF – 104°F
• Storage Temperature: -20°C- 60°C -4ºF- 140ºF
• Humidity: Up to 95% Non-Condensing
• Power Requirements: 220VAC±10%, 50/60Hz, 10A Max
