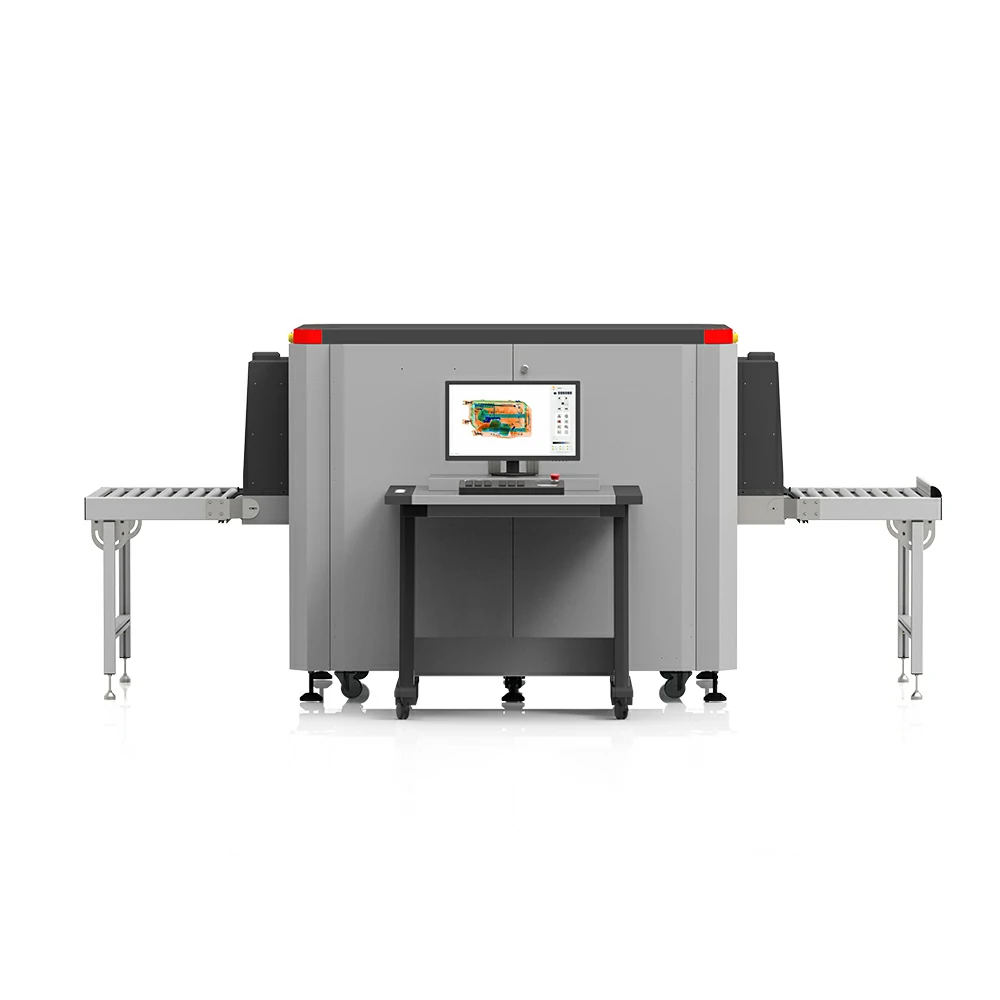

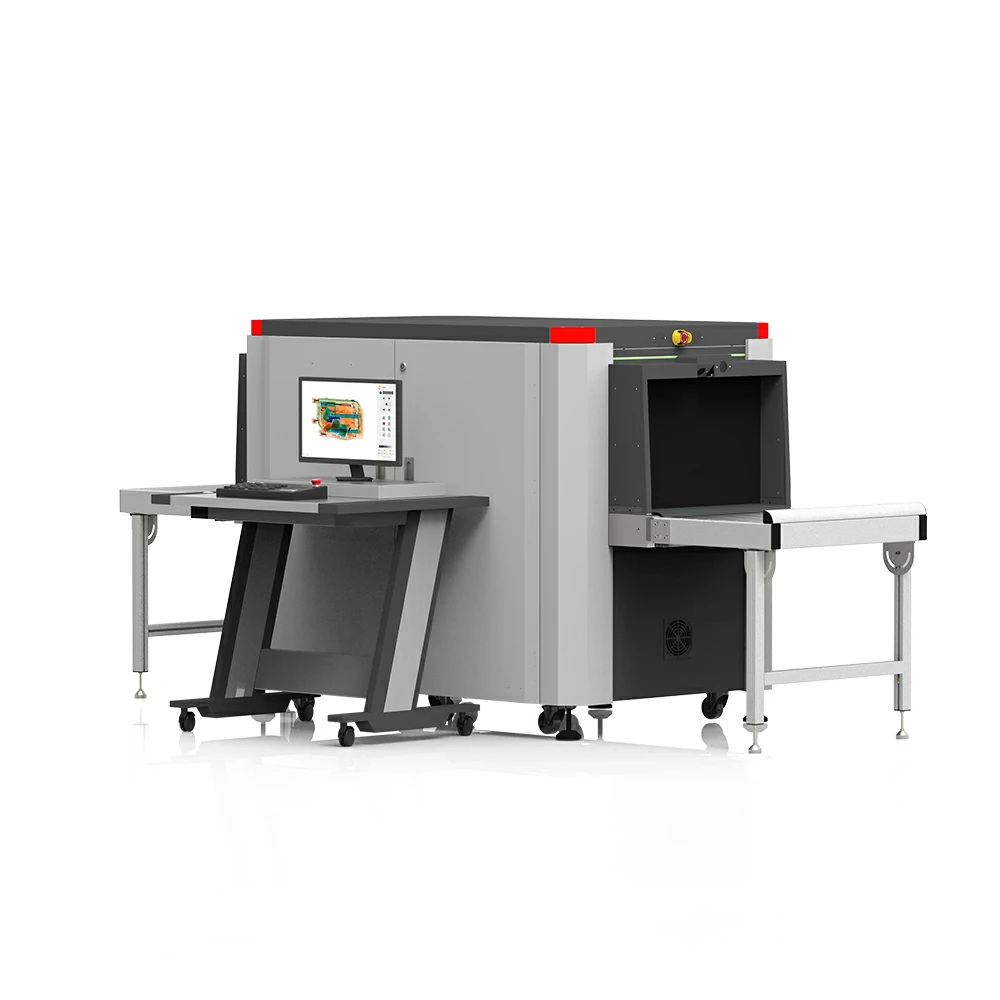

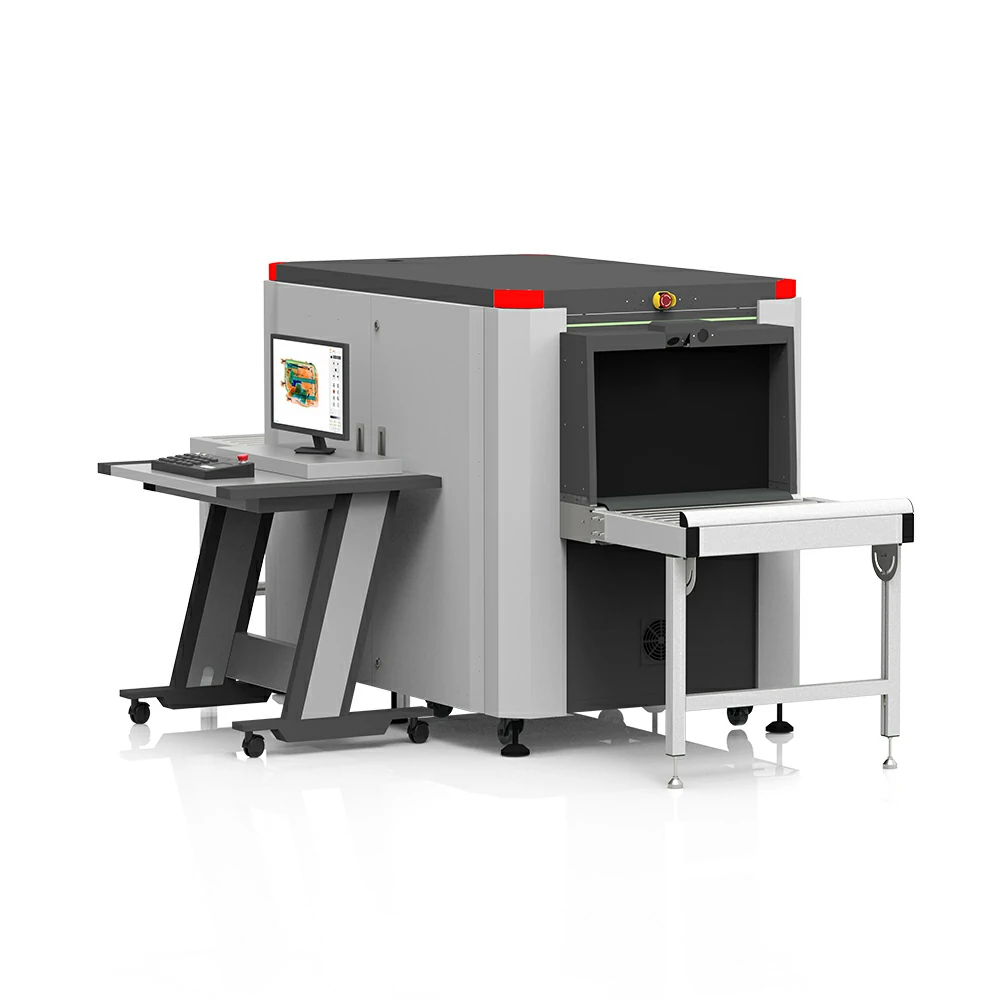

HP-SE6040T 3D TriEye Vision X-ray Baggage Scanner




Product Highlights
- 3D TriEye Vision Technology
- Exclusive X-Insight 3View Software
- Reduced Re-Scanning & False Alarms
- Switchable 4/7 Colors Imaging
- Explosive and Drug (Zeff 789) Assistant Detection
- Organics & Inorganic & Mixture Striping
HP-SE6040T 3D TriEye Vision X-ray Baggage Scanner Description
The latest innovation of HP-SE6040T adopts Safeagle® exclusive 3D TriEye Vision technology, delivers three synchronized perspectives in single scan, outputting three high-definition X-ray images. This allows for multi-angle detail observation, greatly enhancing the accuracy of hidden threat detection and effectively eliminating the blind spots common in traditional systems, significantly reducing re-inspection rates.
The system also supports one-click view switching for comparative inspection. It’s more than just an system upgrade — it’s a revolution in efficiency. Combined with Safeagle® exclusive X-Insight 3View Software and AI algorithms, inspection time per bag drops to just 2s. It sets a new standard for efficiency, reliability, and accuracy in baggage screening. Stronger detection, smarter technology, and a safer world.
GENERAL SPECIFICATIONS
- Tunnel Size: 625(W) x 420(H)mm
- Dimensions: 1984(L) x 1024(W) x 1558(H)mm
- Convery Max Load: 165kg
- Belt Speed: 0.23m/s Bidirectional
X-RAY GENERATOR
- Voltage: 180kV
- Wire Detectability: 40 AWG
- Spatial Resolution: 1.0 mm Horizontal, 1.0 mm Vertical
- Steel Penetration: 36 mm steel Typical
- Tube Current: 0.7 mA
- Cooling: Sealed Oil Bath with Forced Air
- Duty Cycle: 100%, Warm-Up Procedure Required
- Beam Direction: Diagonally Upward
- Detector: L-Shaped Array
- Dual-energy: Yes
WORKING ENVIRONMENT
- Operating Temperature: 0°C- 40°C 32ºF – 104°F
- Storage Temperature: -20°C- 60°C -4ºF- 140ºF
- Humidity: Up to 95% Non-Condensing
- Power Requirements: 110VAC/220VAC ±10%, 50/60Hz, 10A Max
“This model for others countries”. And please note: “Specifications can change according to each country and special requirements.”
