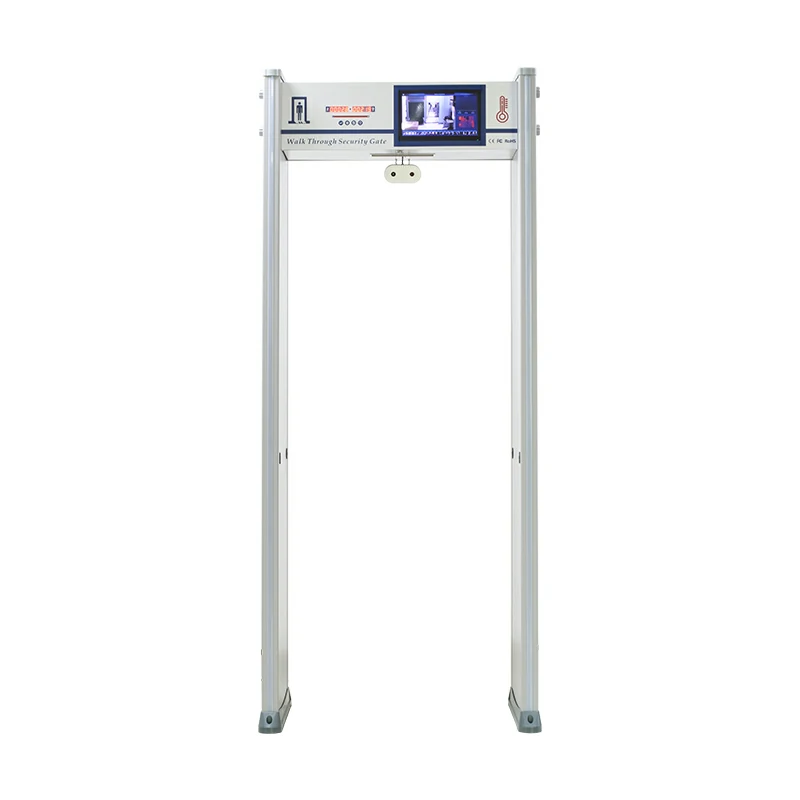

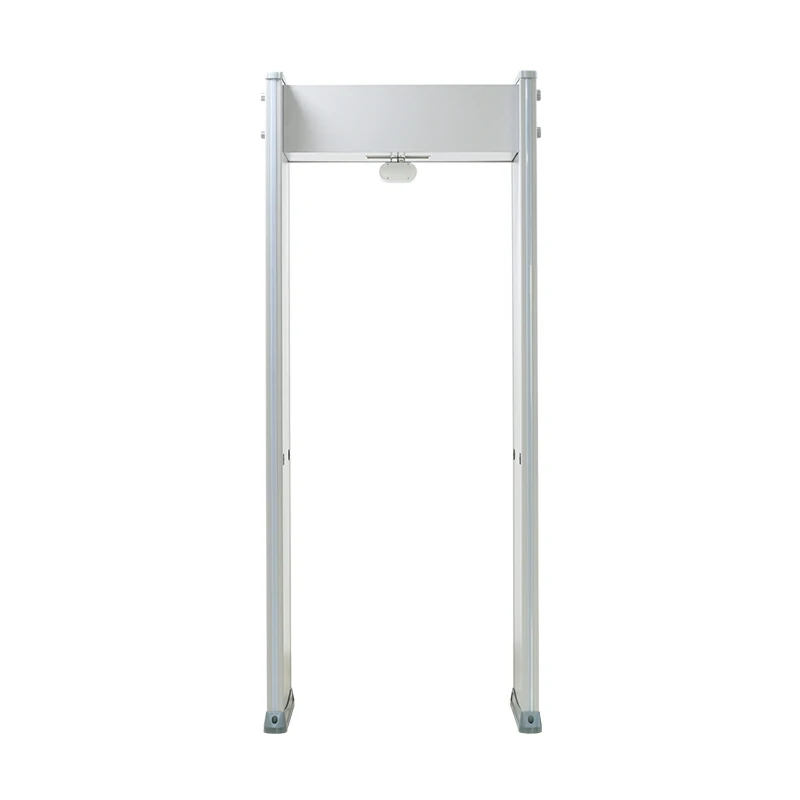

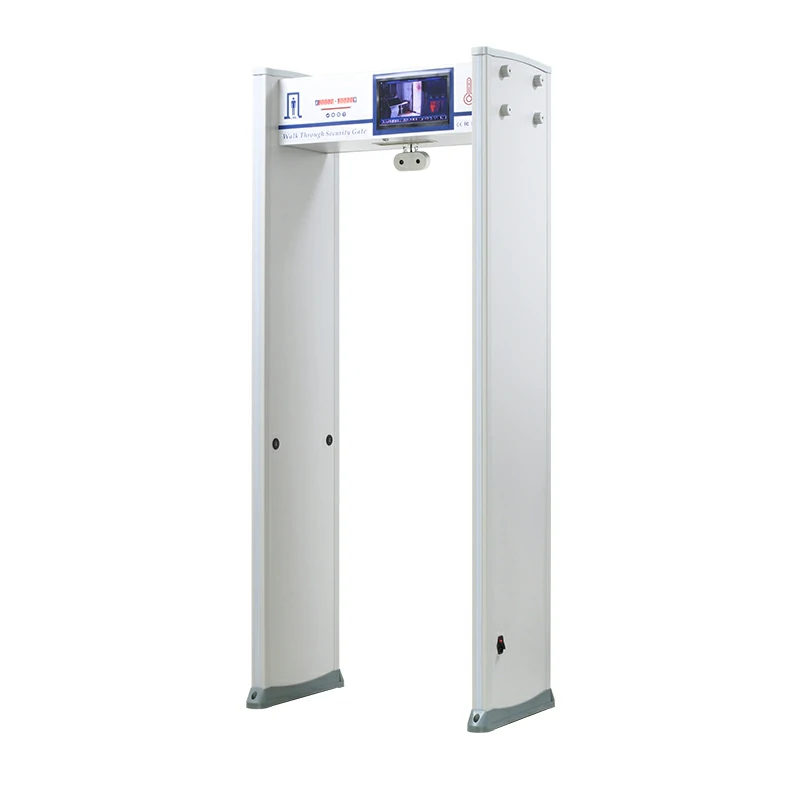

SE1007 Walk-through Thermal Imaging Metal Detection Integrated System

Safeagle SE1007 walk-through type dual vision infrared thermal imaging camera, specially designed for body temperature measurement, realizing two in one detection mode for temperature and metal detection.

The built-in thermal camera captures and creates an dual images(thermal imaging and visible light imaging) of an object by using infrared radiation emitted from the objects and human, which uses infrared thermal imaging technology to detect the temperature of passing people, realizes non-contact rapid temperature detection in crowded population places, no-stop, automatically give the alarm for elevated temperature, showing the body temperature in real-time.

Full-Screen Spot Temperature Measurement
Real-time automatic tracking of the normal and elevated temperature people, ±0.2℃accuracy, realizing simultaneous alarming tip for multiple targets.

Auto-diagnosis, Long-range Detection
Dual vision intelligent algorithm, auto-calibration for temperature, accurately identify and draw the face detection area and lock it as the temperature measurement area, reduce the false alarm and miss rate; distance can be within 3m.

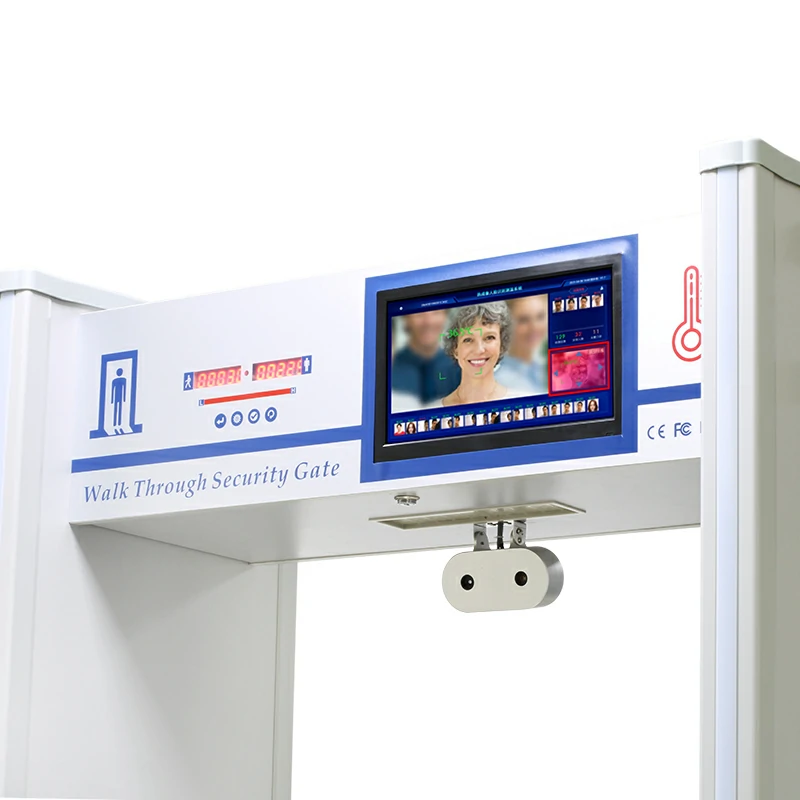

Temperature Box with Temperature Value
The temperature value is in real-time display above the box. Red box will be displayed when exceeds the preset threshold; Green box for normal temperature.

Uncooled Thermal Sensor Technology
Using a high-performance uncooled Vanadium Oxide (VOx) focal plane sensor with small package and high response of noise equivalent temperature difference, which makes more image details and temperature differences captured.

Voice Broadcast for Quick Tip
Support to activate/inactivate the broadcast for Abnormal and Normal Temperature with different language. The temperature unit with  Celsius and Fahrenheit.

Strong Data Traceability
Capture and archive for the individuals with/without elevated temperature. All the temperature measurement data(with face) can be exported in a EXCEL table.

Thermal Camera Parameters

• • Appearance: Aviation aluminum packaging binocular thermal imaging
  • Type: RGB camera
  • Effective Pixel: 206*150
  • Resolution: 2MP,1080P
  • Pixel Size: 12µm
  • Frame Frequency: 9Hz
  • Temperature range: 32℃~42.5℃
  • Distance: 1~5M
  • Temperature Unit: Celsius /Fahrenheit
  • Accuracy: 2M≤ ±0.3℃; 3-4M≤ ±0.4℃; 4-5M≤ ±0.5℃
  • High Temp. Alarm: Alarm Value can be set
  • Mask Recognition: Supported
  • Image Data: Exported by USB
  • Turnstile Connection: Supported
  • Screen Size:11.6 Inches, IPS LCD screen
  • Interface: USB*1
  • Storage: 1GB Memory, 8GB Storage
  • Working Humidity: 10%～90 %

Metal Detector Parameters

• Technology: Digital pulse technology
• Sensitivity Level: 1-255 grades(adjustable)
• Distinct Sensitivity Level: 1-400 grades(adjustable)
• Sensitivity Application: 18
• Working Frequency Range: 1~21 bands
• Alarm: Sound and LED Visual
• Password Protection: Supported
• Factory Reset: Supported
• Pass Through Rate: Over 60 people per minute

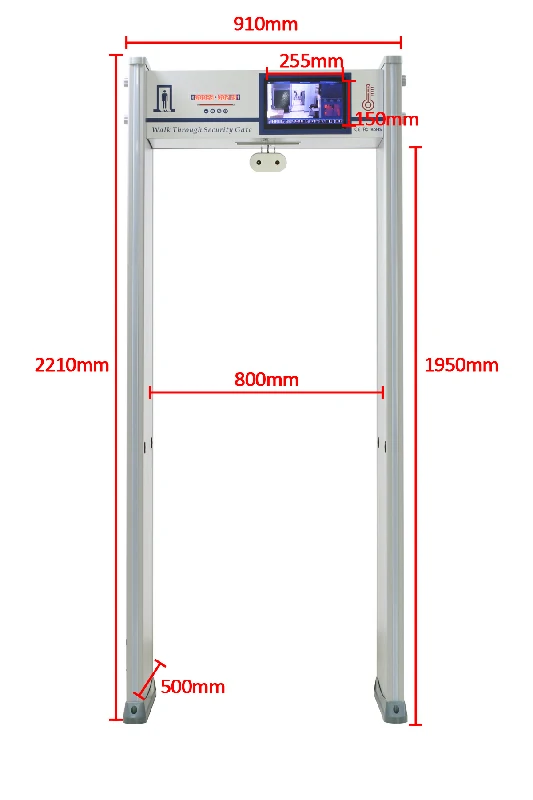

• Vertical Channel Size: 1950(H) x 800(W)
• Vertical Dimension: 2210(H) x 910(W) x 500(D)mm
• Working Voltage: AC 110~220V, 50~60 Hz
• Working Envi. Temp.: -10℃-+40℃
• Power consumption: <30 W
• Net Weigh: 2 cartons
• Panel: 2300*645*200mm/ctn,60kg
• Chassis: 800*470*390mm/ctn, 10kg
• Plywood case: Optional
